G652D LSZH Fiber Patch Cord SC APC To LC UPC 3.0mm OD Single Mode

Product Categories
Shenzhen Hengtongda Comunication Equipment Co., Ltd.
Contact Now

G652D LSZH Fiber Patch Cord SC APC To LC UPC 3.0mm OD Single Mode

Brand Name : HTD / OEM

Model Number : SC APC to LC UPC SM SX

Certification : ISO9001

Place of Origin : China

MOQ : 10 Pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs / week

Delivery Time : 5 - 10 Business Days

Packaging Details : Each piece of patch cord will be packaged in a 20*20 square plastic bag.

Product : Fiber Optic Patch Cord

Connector : SC APC & LC UPC

Outer Diameter : 3.0 mm

Fiber No. : 1

Fiber Type : G652D

Length : 2 Meter / Other

Mode : Single Mode

Sheath : LSZH

Contact Now

SC APC to LC UPC Fiber Optic Patch Cord 3.0mm OD G652D Fiber LSZH Sheath

This fiber optic patch cord product is a mixed type patch cord with a SC APC connector at one end and a LC UPC connector at another end.

Fiber Optic Patch Cord​ Feature

◆ SC APC to LC UPC

◆ Mixed Patch Cord

◆ Single Mode Simplex

◆ G652D Fiber

◆ 3.0mm Outer Diameter

◆ LSZH Sheath - Flame Retardant

Fiber Optic Patch Cord​ Parameter

Parameter Unit Data
Operating Wavelength nm

1310

1550
Insertion Loss dB ≤ 0.3
Return Loss dB ≥ 50 (UPC) ≥ 60 (APC)

3D Interference Test

Passing Rate

 % 90
Repeatability dB ≤ 0.1
Plug and Pull Durability Times > 1000
Operating Temperature °C -10 ~ +75
Storage Temperature °C -40~+85

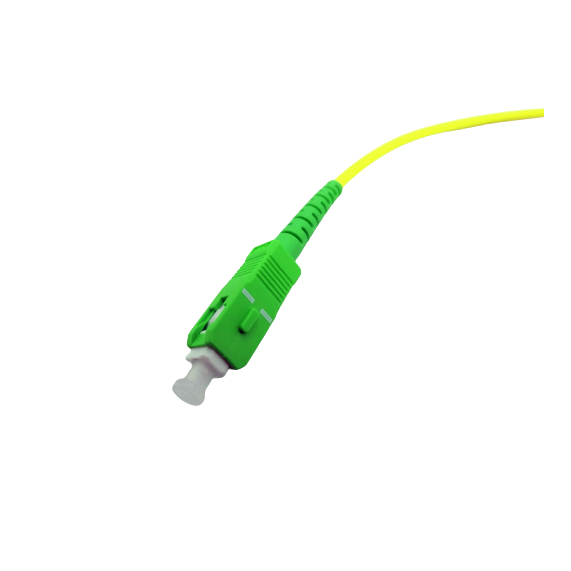

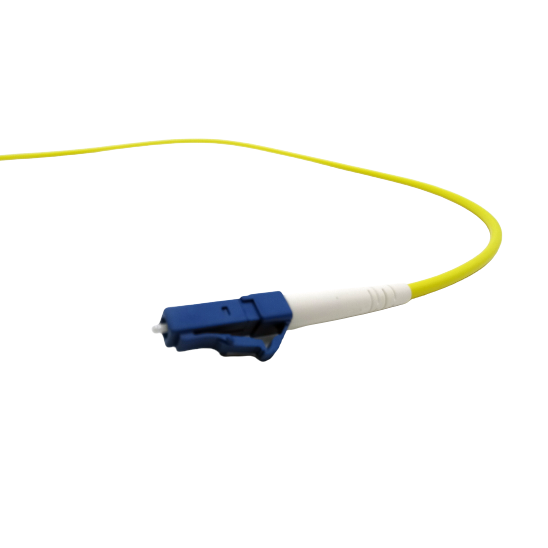

Fiber Optic Patch Cord​ Image

G652D LSZH Fiber Patch Cord SC APC To LC UPC 3.0mm OD Single Mode

G652D LSZH Fiber Patch Cord SC APC To LC UPC 3.0mm OD Single Mode

G652D LSZH Fiber Patch Cord SC APC To LC UPC 3.0mm OD Single Mode

G652D LSZH Fiber Patch Cord SC APC To LC UPC 3.0mm OD Single Mode
